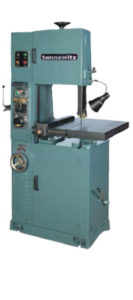

TR-1610

TR-1610

TR-1610
FEATURES:

Infinitely variable speed. Blade welder and grinder are front mounted for quick, accurate blade repair & installation. Replaceable rubber tires. Brush for cleaning lower drive wheel. Maintenance-free air pump provides air to remove chips from the point of cut. Hand wheel controlled speeds. Adjustable saw blade guides. Machine work light. Cast iron frame to minimize machine vibration and insure accuracy.

ALL MODELS AVAILABLE WITH & WITHOUT WELDER THIS SERIES IS BUILT FOR THE TOUGH JOBS.

Tannewitz

TR-1610 Specifications
STANDARD MODEL TR1610
Throat depth 15 3/4″
Work height 9 3/4″
Blade width 1/8″ – 5/8″
Blade length 129 7/8″
Bandwheel dimensions 16″
Bandwheels number 2
Wheel tires Replaceable rubber tire
Blade guides Tool steel insert w/wear pin
Table type FIXED
Main table size 22″ x 23 5/8″
Auxiliary table size
Table tilt 15° F,B,L,R
Table height 39 3/4″
Blade drive motor 2HP 3PH
Electric controls Magnetic starter w/115V
Blade speeds 65-1230 FPM
Transmission 4-Speed Totally enclosed
Blade welder, grinder, shear 5/8″ CAPACITY OPTIONS
Dimensions (L x W x H) 40″ x 24 3/4″ x 74″
Net weight 1210 LBS
