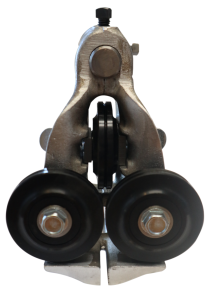

Part #T0587D – lower guide assembly

Part #T0587D – lower guide assembly

  • Easily adjusts for blade ¼” to 2”
  • Blade speeds up to 10,000 SFPM



Because side wheels are identical and interchangeable with thrust wheels, which take all significant wear, there are literally three rollers per guide assembly. They are constructed of the best grade high carbon alloy steel to provide maximum blade support, and they are permanently sealed and lubricated.

A V-shaped groove in the thrust wheel holds the back of the blade while the two front wheels give support to the side of the blade. Because the wheels run with the blade when stress is applied, blade heating and crystallizing are eliminated – and so then, is blade breakage.
