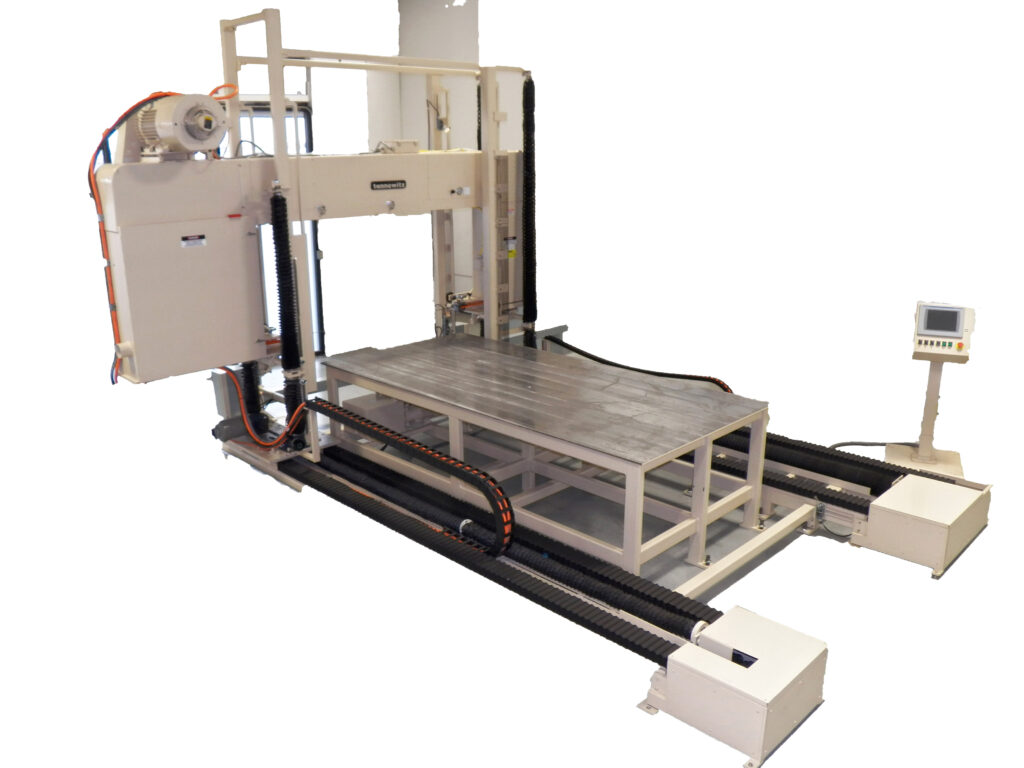

Tannewitz introduces the model 36MH70 horizontal automated traveling head honeycomb bandsaw.
The saw is capable of cutting all types of honeycomb material 60” wide up to 33” thick with a saw head travel of 140”
Features include fully programmable indexable PLC, saw head vertical travel of 34” with +/- .002 repeatability, head tilt adjustment of 0-30 degrees, hydraulic blade tension, 15hp variable speed drive motor with blade speeds of 4,000-8,000 SFPM.
The traveling head is also variable speed with cutting rates of 10-40 linear inches per minute holding a tolerance of +/- .003
Download Press release
This model includes X200 base with manual left/right table adjustable 12” either side of center. The in/out stroke on the table is operated hydraulically with flow controls to adjust the in and out speed of the hydraulic table.
The head is equipped with a 2 button control to operate the saw head in the chopping mode. The 2 button control is designed for high production cutting.
Also included is a laser alignment so that the work piece to be cut can be aligned up directly with the cutting wheel. All controls for the in/out stroke of the table and the 2 button power assist is located on a separate pedestal control panel away from the cutting operation.
