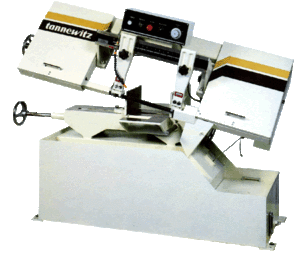

HBS-1018

HBS-1018

HBS-1018
FEATURES:

Hydraulic feed
Cast iron wheels
Cast iron vise base
Coolant system
Mitre capabilities to 45°

Tannewitz

HBS-1018 Specifications
Round cutting capacity at 0 degrees: 10″
Round cutting capacity at 45 degrees: 6″
Rectangle cutting capacity at 0 degrees: 18″ wide x 5″ high
Rectangle cutting capacity at 45 degrees: 17 1/2″ wide x 6″ high
Square cutting capacity: 10″
No. of speeds (FPM): 4-speed (114, 196, 288, 377 FRM)
Variable speed (75-400 FRM)
Motor drive: 2HP 3PH 230/460V
Blade size: 1″ x 129 1/4″
Wheel dimension: 12 1/2″
Vise: 12″ wide x 5″ high
