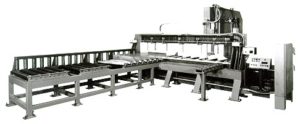

6024MH

6024MH

6024MH
FEATURES:

The Mill Plate Saws can increase productivity and reduce costs in cutting tool steel, alloys and other non-ferrous materials. The unique construction of these band mills allow blade tensions to 35,000 psi for precise, vibration-free cutting. Available models feature completely automated, programmable sawing and DC indexing systems, the allow for unattended operation. Labor savings and accuracy are key to a fast payback.

Coupling Tannewitz quality with the latest sawing technology results in precise, accurate and repeatable cutting with minimal kerf loss.

In addition to these standard models, Tannewitz has built hundreds of special designs to meet specific customer requirements. Contact our Engineering Department concerning your particular application

Tannewitz

6024MH Specifications
Rip cutting (bars)
Capacity 24″T x 30″W x 144″L
Under guide capacity 24″
Back gauge capacity (max)) 0-30″W
Feed table 4’W x 12″l
Cross cutting (blocks
Table capacity 24″T x 60″W x 16’L
Cutting capacity 24″T x 60″W x 60″L
Feed table height 52″W x 12’L
Work table height 36″
Workholding clamps
Bride clamp total 7
Capacity 24″
Drive/motor 15hp
Cutting speeds 8o-3600 SFPM
Blade width (max) 2″
Feed table (cross cut) 52″W x 16’L
