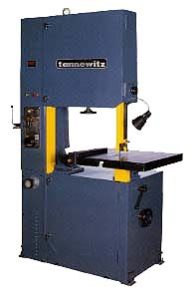

TR-2812VW

TR-2812VW

TR-2812VW
FEATURES

Enlarged speed range: 50-5200 ft/min to cut all materials.  Infinitely variable speed.  Blade welder, grinder and shear are front mounted for quick, accurate blade repair and installation.  Maintenance-free air pump provides air to remove chips from the point of cut. Digital blade speed indicator. Blade tension indicator. Totally enclosed transmission. TEFC 3 Phase motor. Rip fence. Heavy duty cast iron table. Magnetic, low voltage controls. Brush for cleaning lower drive wheel.

Tannewitz

TR-2812VW Specifications
STANDARD MODELS 20″ 28″ 40″
THROAT DEPTH 20″ 28″ 39 3/4″
WORK HEIGHT 12 3/4″ 12 3/4″ 12 3/4″
BLADE WIDTH 1/8″ – 1″ 1/8″ – 1″ 1/8″ – 1″
BLADE LENGTH 161 1/2″ 198″ 194 7/8″
BANDWHEEL DIMENSIONS 20 1/2″ x 1 3/4″ 28 3/8″ x 1 3/4″ 17″ x 1 3/4″
BANDWHEELS NUMBER 2 2 4
WHEEL TIRES Replaceable rubber tire Replaceable rubber tire Replaceable rubber tire
BLADE GUIDES Tool steel insert w/wear pin Tool steel insert w/wear pin Tool steel insert w/wear pin
TABLE TYPE FIXED FIXED FIXED
MAIN TABLE SIZE 29 1/8″ x 26 3/4″ 29″ x 26 3/4″ 29″ x 26 3/4″
AUXILIARY TABLE SIZE
TABLE TILT 45° R, 15° L 45° R, 15° L 45° R, 15° L
TABLE HEIGHT 40″ 42″ 40″
BLADE MOTOR DRIVE 3HP 3PH 3HP 3PH 3HP 3PH
ELECTRIC CONTROLS Magnetic starter w/115V Magnetic starter w/115V Magnetic starter w/115V
BLADE SPEEDS 50-5200 FPM 50-5200 FPM 50-5200 FPM
TRANSMISSION 4-Speed Totally enclosed 4-Speed Totally enclosed 4-Speed Totally enclosed
BLADE WELDER, GRINDER, SHEAR 1″ CAPACITY STD 1″ CAPACITY STD 1″ CAPACITY STD
DIMENSION (L X W X H) 51″ x 41″ x 81″ 61 3/8″ x 41″ x 90 3/4″ 70 1/2″ x 40 1/2″ x 75″
NET WEIGHT 1720 lbs 2160 lbs 2600 lbs
