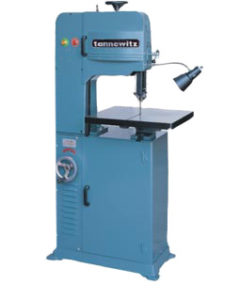

TR-14

TR-14

TR-14
FEATURES:

Rugged Cast Iron Frame eliminates deflection & vibration for precise cutting. Infinitely variable speed for all types of materials. Hand wheel controlled speed changes. Speed changes while in operation w/o stopping or w/o pulley changes. Maintenance free air pumps to remove chips @ the cutting point. Machine light. Rubber tires for better tracking.

Tannewitz

TR-14 Specifications
Blade Speeds (FPM): 82-384 FPM
Height Capacity (max/in): 7 7/8″
Throat Capacity (max/in): 14 1/8″
Table Size (in): 22 1/4″ x 19 5/8″
Table Tilt: 15° R&L, 10° F&B
Blade Length (approx./in): 119 1/8″
Blade Width (min-max/in): 1/8″ – 1/2″
Table Height at 90° (in): 39 3/8″
Table Height at 90° (in): 36 5/8″ x 22″
Table Height at 90° (in): 1HP 1PH 115/230V
Floor Space Required (in): 726 lbs
