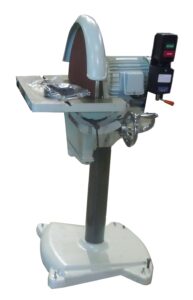

MODEL 20-SD
FEATURES:

Overall Dimensions: Width 29″, Depth 30″, Height 54″ Table: 11″ x 27″, with 3 3/8″ x 4 ¾” projections beyond disc. Raises and lowers from 1″ below disc to 1″ below center of disc. Tilts 45 degrees up and down. Locks securely in any position. Table stop – 90 degrees positive and adjustable. Protractor has 1 degree markings on sloping face. Table front edge machined parallel with disc and 3/8″ x ¾” groove. Hand tilt table standard, gear tilt optional at extra cost.

Tannewitz

20-SD Specifications
Disc: 20″ dia. Cast aluminum
Hub: 6″ dis. Cast Iron
Motor:  2 or 3 HP; 3 phase
Starter: Manual, magnetic or reversing
