16SD Sander

16SD Sander

16-SD

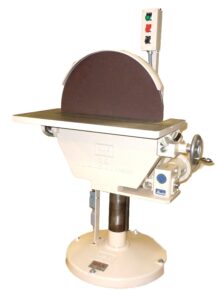

MODEL 16-SD

FEATURES



The all time favorite of the Max line. Table tilts to any angle from 45 degrees up to 45 degrees down and moves on carefully ground steel table column 3 ½” O.D. Worm gear an rack table elevating mechanism gives positive control and lock.

Solid, well balanced, not necessary to bolt machine down. Cas aluminum alloy discs easily and quickly changed without removing hub. Disc enclosure forms effective dust chute. Gear tilt table available at extra cost.



Tannewitz

16SD Sander Specifications
Table: 10” x 22”. Fine grain cast iron, surface, ground and front edge is machined parallel with slot and disc
Overall Dimensions: Width 24”, Depth 28”, Height 52”
Disc: 16” dia. Cast aluminum (356T6)
Hub: 6” dia. Cast iron
Motor: 1-1 ½ and 2 HP, 1 or 3 phase
Starter: Magnetic or reversing
Shipping Weight: With motor approximately 375 lbs.
