3600MH6 Plate Saws | Tannewitz Quality Bandsaws
logo

3600MH6

3600MH6

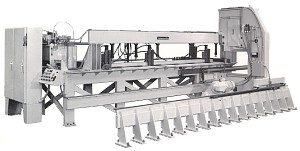

TANNEWITZ 3600 MH6
FEATURES:

Moving head
Cuts plate 12 feet long x 5 feet wide x 8 inches thick 36″ throat capacity. This systems consists of three (3) hydraulically actuated rear clamps that does not release the plate during cutting or indexing. This feature insures the accuracy of repetitive cuts. The saw can be programmed to make up to 99 cuts of various widths. Saw will cut continually while the programmed number of cuts is being fulfilled. Also included is an interrupt option that permits a special cut to be made, and the saw automatically returns to the pre programmed cutting sequence. This programmable feature allows the saw the cut on its own without operator attendance.

Tannewitz

3600MH6 Specifications
FRAME: Heavy duty welded steel construction with 35 1/2″ throat capacity
UNDER GUIDE CAPACITY: 6″ STD. (Other capacities available)
WHEELS: Two 36″ diameter super rigid all steel wheel with heavy dutyshafts and bearings.
TIRES: Tannewitz Speedi-change demountable tires with neoprene surface
GUIDES: All steel Tannewitz guides with carbide jaws. (1) Upper, (1) lower Hydraulically operated with column mounted controls, automatically maintains proper blade tension.
GUIDE POST: Capable of tensioning a 1 1/2″ x .050 blade to 30,000 PSI
BAND WIDTHS: Minimum 1″, Maximum 2″
BLADE SPEEDS: 55 to 350 SFPM
BAND DRIVE: 5HP
RAILS: Saw rides on hardened Thompson roundways, and has hydraulic feed travel and rapid return of 150″. Feed Rate infinitely variable from .5 inches to 25 inches per minute
