GHE

GHE

GHE

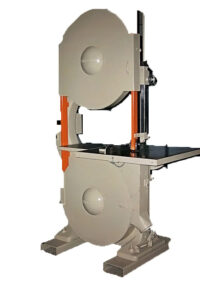

Tannewitz originated and pioneered the manufacture of high speed band saws. Tannewitz GHE high speed bandsaws are direct drive and custom-produced for special wood cutting operations. Strength and rigidity in their frames provide for maximum control of vibration and smoothness of operation.

Exceptionally heavy casting,  3/4″ to 1″ thick, the gooseneck design represents the shortest distance between the main frame and the upper wheel bearing. Consequently, this is the strongest, stiffest type of construction conceivable. The GH Series high speed bandsaws are designed for maximum life under severest conditions.



Tannewitz

GHE Specifications

Size, wheel diameter                                                                          36″

Under guide capacity                                                                         20

Throat capacity                                                                                   35 1/2″

Base construction                                                                                Cast Iron

Motor drive                                                                                           Direct

115-volt push button controls                                                           STD

Tires (Replaceable)                                                                             Speedi-change

Band width capacity                                                                           1/8″ to 1 1/4″

Band speed                                                                                           8,400FPM

Band length                                                                                          19′ 6″

Table size                                                                                              36″ x 37″

Auxiliary table size                                                                             16″ x 19″

Table tilting                                                                                           45 degrees right, 05 degrees left

Upper wheel adjustment                                                                   7″

Wheel type                                                                                           Heavy duty balanced steel disc

Brakes                                                                                                   Electric, 2 wheel

Gear adjusted guidepost                                                                     1 1/4″ x 2 1/4″

Table height                                                                                          41″

Overall height                                                                                       104″

Work light                                                                                             STD

Tannewitz all steel guides for blades up to 1 ¼” wide                 STD

Operator & Maintenance manuals                                                   2

F0435J Fence                                                                                       STD

B0429 Miter gauge                                                                             STD

NFPA-79 Electrics                                                                               STD

Paint Color                                                                                           Beigetone

Net Weight                                                                                            2900 lb.

Crated Weight                                                                                      3200 lb.
