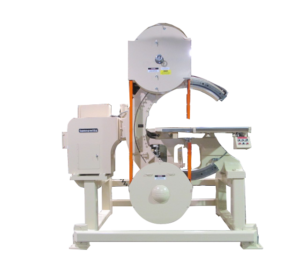

MODEL B-11 – 38″ AUTOMATIC BEVEL BAND SAW:

Complete with full standard equipment including variable speed angling mechanism powered by a 1 HP reversing motor with integrally mounted disc brake for close setting of angles; with push-button magnetic controls to angle the blade either side of vertical to 45 degrees, with JOG FORWARD and JOG REVERSE pushbuttons for close control of angles and with limit switches to automatically stop angling motion at extreme 45 degree angles. Center of angling motion to coincide with the intersection of the blade with top of table. 10 HP TEFC, 3 phase, 60 cycle, 230/460 volt gear motor built into the machine with bottom wheel mounted directly on motor shaft to give cutting speed of approximately 5000 FPM. Adjustable work light. With plain, fixed height standard table construction, guards for wheels and blades, ball bearing guides above and below table, with counterweighted guide post, one saw blade, aluminum disc wheels mounted on cast iron hubs providing 3″ face. Electrical to NMTBA standards.
