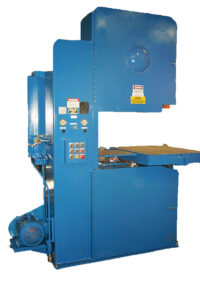

GV1NE G Series Bandsaws | Tannewitz Quality Bandsaws




Variable speeds: 60-15,000 FPM
36″ throat capacity (blade to column)
20-48 Underguide capacity (thickness)


GV1NE Specifications
Blade speeds (fully variable) 200-400 SFM 1200-8000 SFM2000-12,000 SFM 2500-15,000 SFM
Horsepower 7 ½ to 25 HP
Size, wheel diameter 36″
Under guide capacity 20″
Throat capacity 35 1/2″
Base Construction Weldment
Tires (Replaceable) Speedi-change
Band width capacity Up to 1 1/4″
Band length 20′-0″
Table size 36″ x 37″
Auxiliary table size 16″ x 19″
Table tilting 45 degrees right
Upper wheel adjustment 5 degrees left
Wheel type 5″
Brakes Heavy duty balanced steel disc
Gear adjusted guide post Electric, 2 wheel
Table height 42″
Overall height 105″
Work Light Standard
Tannewitz all steel guides for blades
    up to 1 1/4″ wide
Operator & Maintenance manual 2
Paint Color Beigetone
Net Weight 3700 lb
Crated Weight 4000 lb
