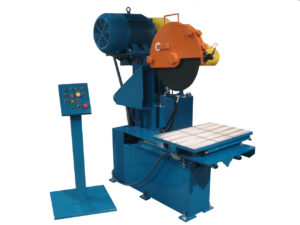

Solid Econo-Base (SEB) Module

Solid Econo-Base (SEB) Module

Where table adjustability is not required, the Solid Econo Base is the answer. Designed with a wide-trough and drain plug for wet-cutting applications, the SEB is a low-cost, long-lasting base fabricated from plate steel, with extra-heavy wear plates on the work surface. It is ideally suited for structural shape or bar stock cutting, as well as cutting off casting gates and risers. In addition, this base is designed for the oscillation option described in this brochure.

The Solid Econo Base can be matched with any Tabor-Brasive head module.

Tannewitz

Solid Econo-Base (SEB) Module Specifications
Tables Size – 37” x 25” (37” x 50” overall)
Floor to top of table – 33”
Approx. Overall Machine Ht. 16” wheel dia. heads with low trunnion – 68”
20”, 24”, 30” wheel dia. heads with high trunnion – 74”
Approx. Floor Space 44” wide x 50” deep
Max. distance* between table and spindle centerline with low trunnion – 17¼”
with high trunnion – 23”
Max. space* between new wheel and table 16” wheel and low trunnion – 9¼”
20” wheel and high trunnion – 13”
24” wheel and high trunnion – 11”
30” wheel and high trunnion – 8”
