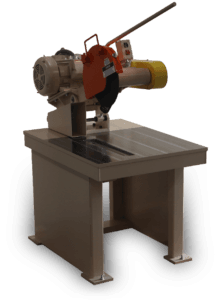

CR 20 inch Tabor

CR 20 inch Tabor

Tannewitz

CR 20 inch Tabor Specifications

Wheel Diameter 20"
Wheel Arbor 1"
Motor Single speed drive available in 10-15-20-25-30-40-50-75-100 h.p. Two-speed drive available in 20-25-30-40 h.p. We recomend minimum of one h.p. per inch of wheel diameter.
Max Spindle Speeds Single Speed 2674 RPM, Two Speed 2674/4000 RPM
Wheel Washers or Flanges 5" Diameter
Drive Multiple V-Belts, 2-6 depending on H.P.
Centerline of Wheel to Trunnion 25 1/2"
Exhaust Hood Pipe Size 5" diameter
Chopper - Fixed Cut Adjustable chopper head- locks at any point
